Passive Speed Sensors (VR)

For more information visit our Application Design page

Download Operating/Installation Instructions

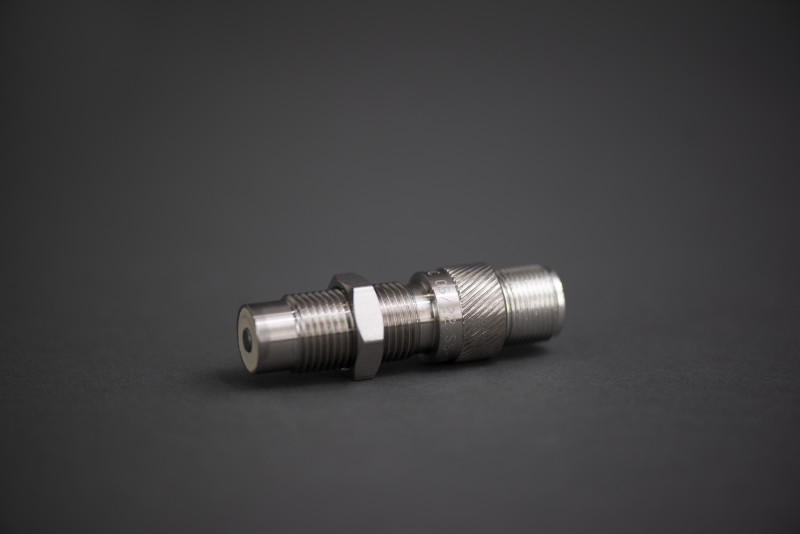

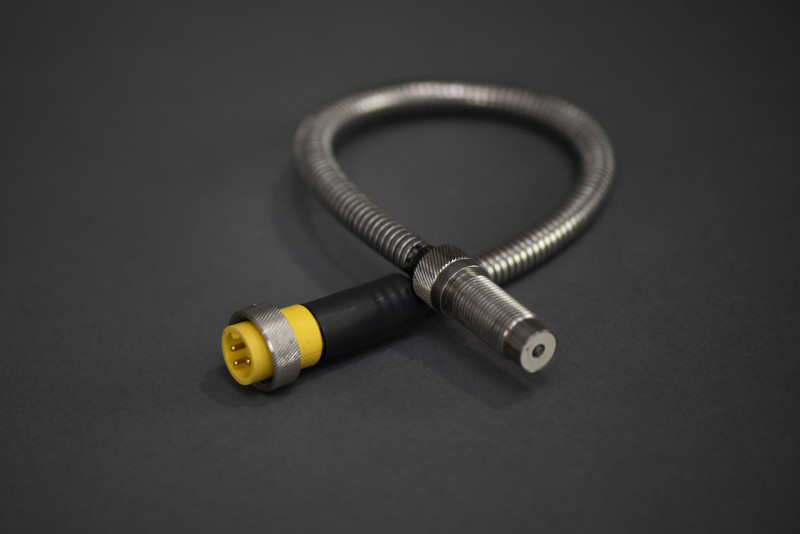

Passive Speed Sensor

Smith Systems, Inc. passive speed sensors convert mechanical motion to an A/C voltage without the need of a power supply. These self-contained magnetic sensors produce a magnetic field which, when in the proximity of ferrous objects in motion, generate a voltage. The frequency of this voltage is directly proportional to the speed of the object in motion.

Magna-Tran ® speed sensors are available in a variety of housing configurations and terminations. Housing configurations to accommodate high pressure and fluid submersion applications are available. These passive sensors are designed to accommodate a broad spectrum of temperatures and are resistant to oil, dirt and moisture.

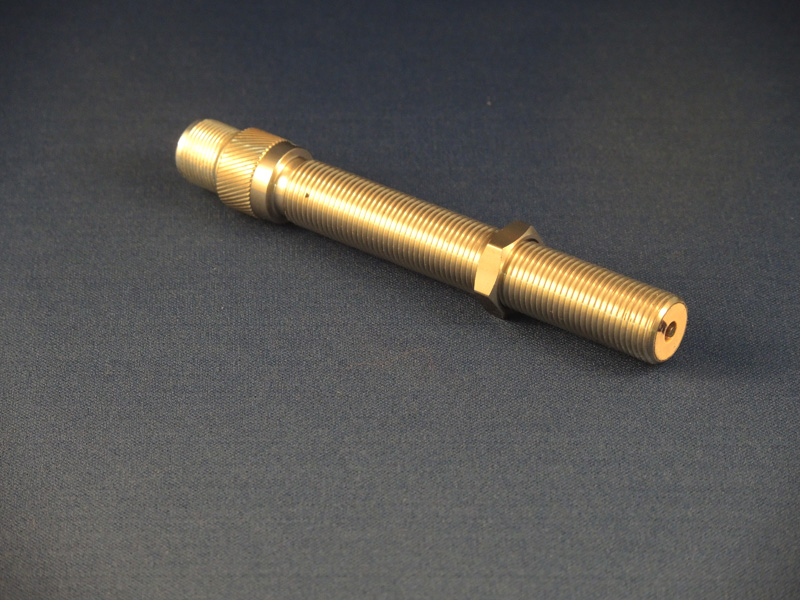

  • Passive-1.jpg

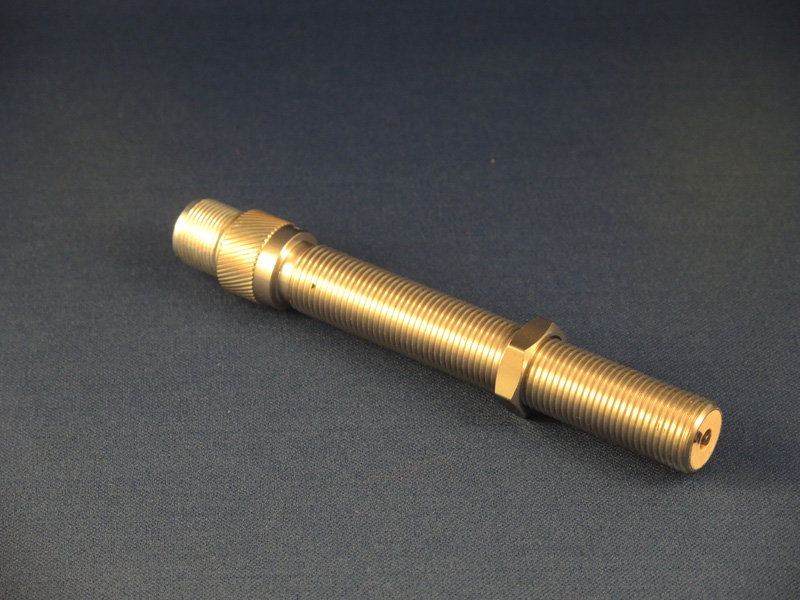

  • Passive-2.jpg

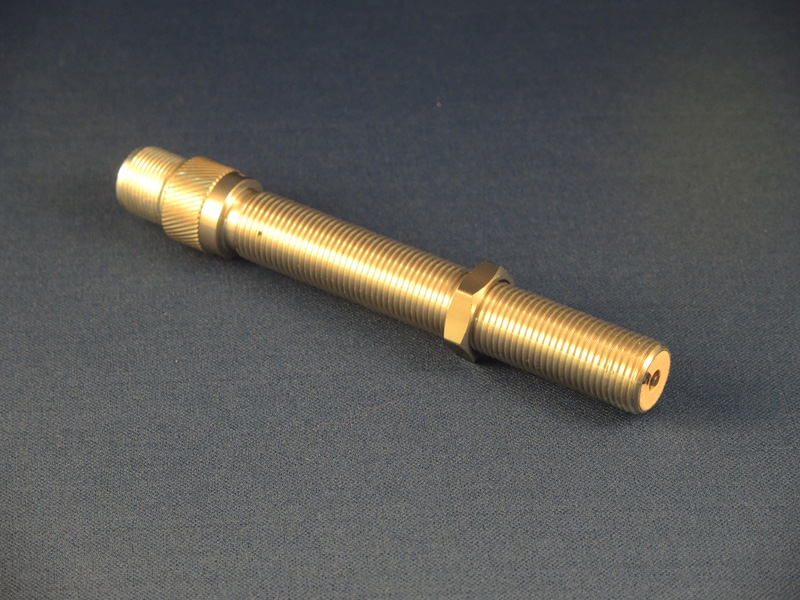

  • Passive-3.jpg

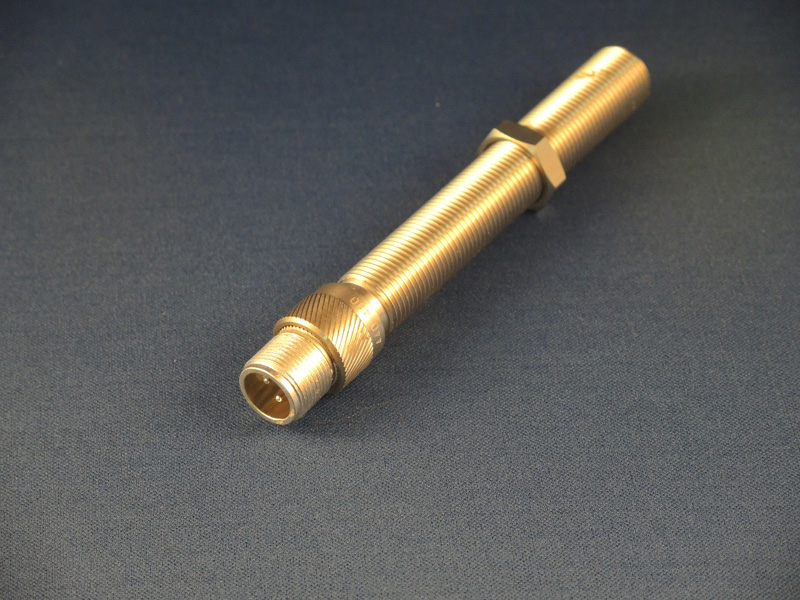

  • Passive-4.jpg

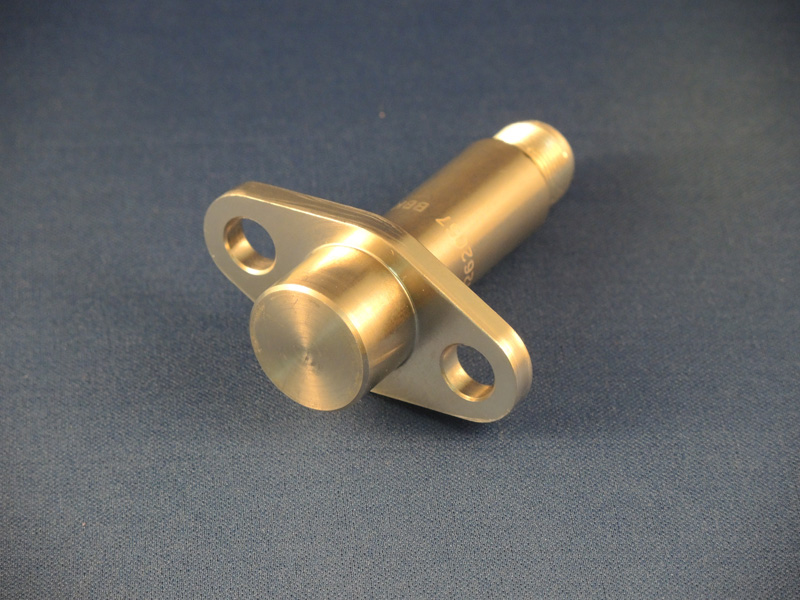

  • Passive-6.jpg

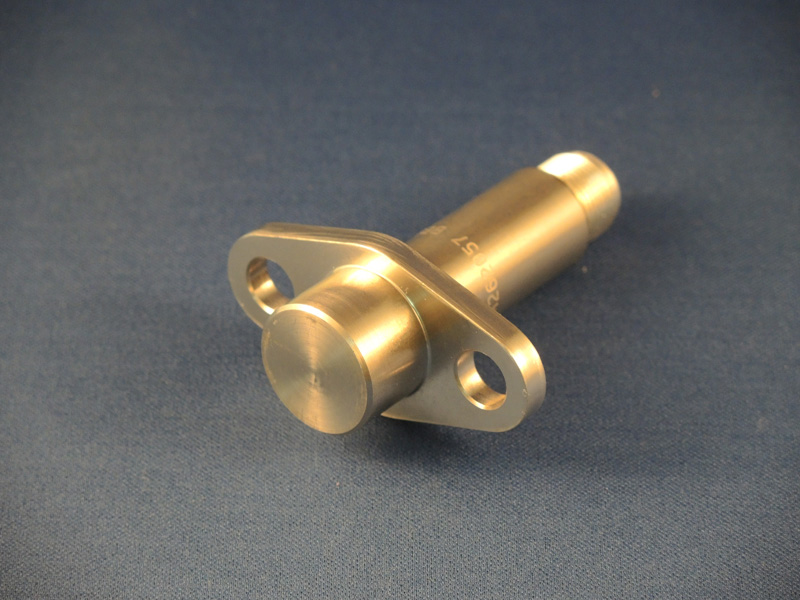

  • Passive-7.jpg

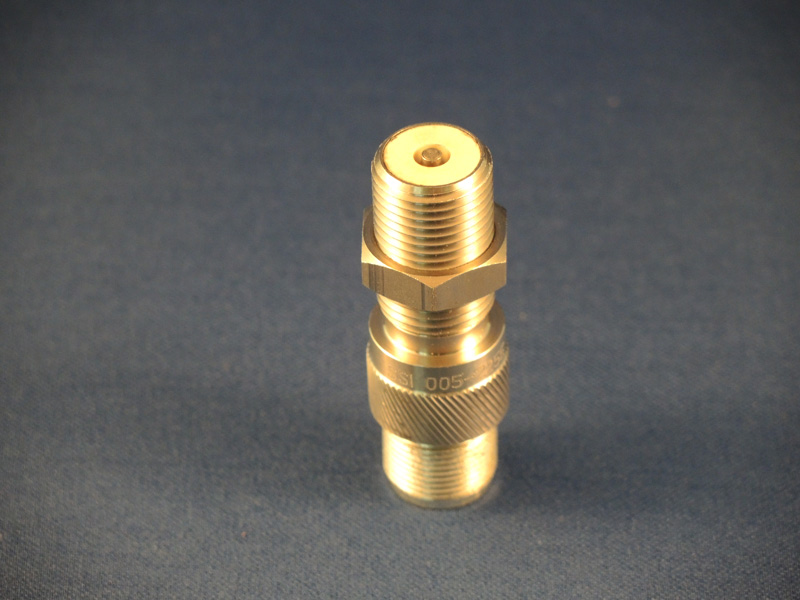

  • Passive-8.jpg

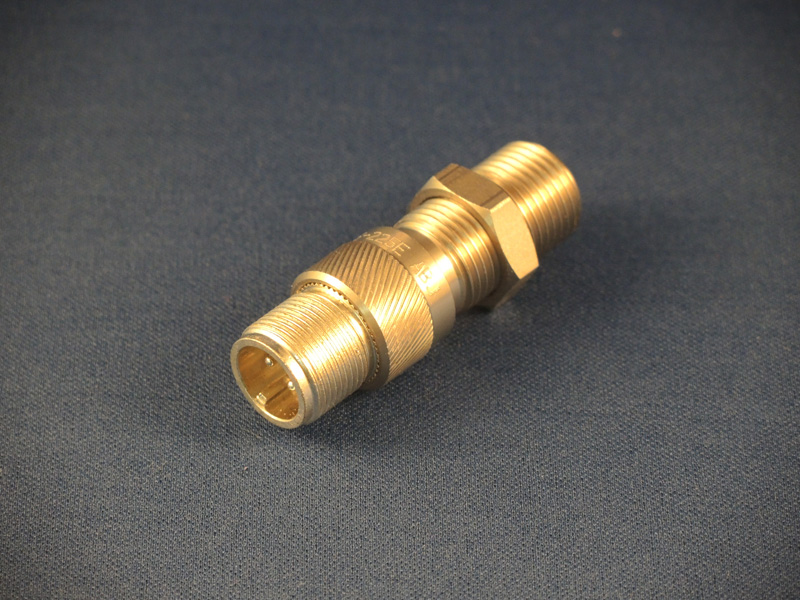

  • Passive-9.jpg

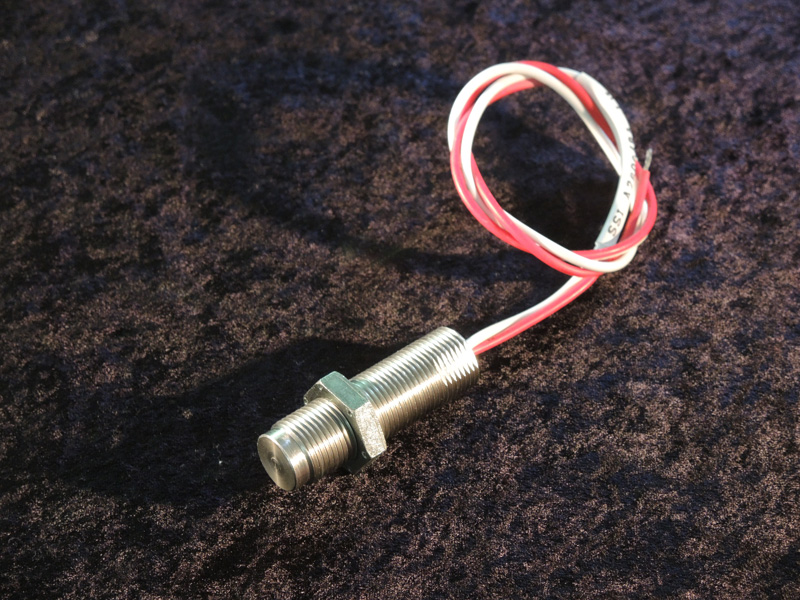

  • Passive-10.jpg

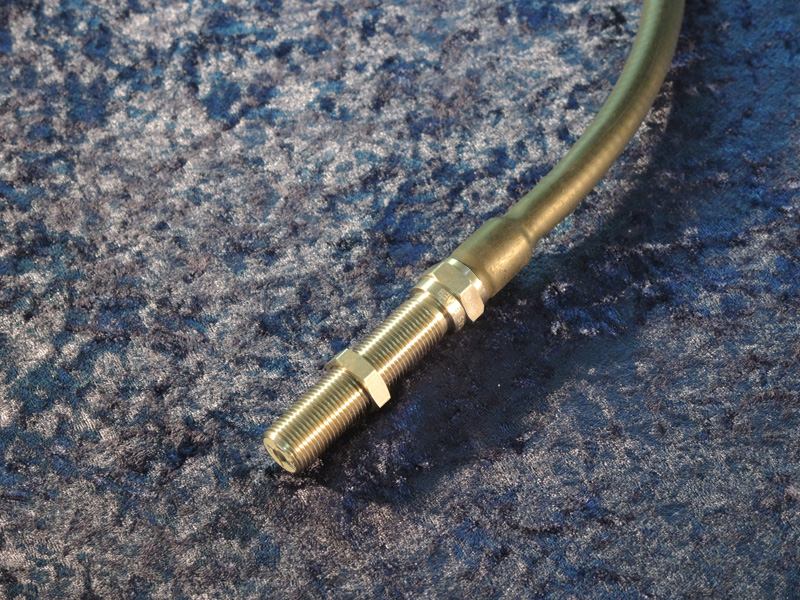

  • Passive-11.jpg

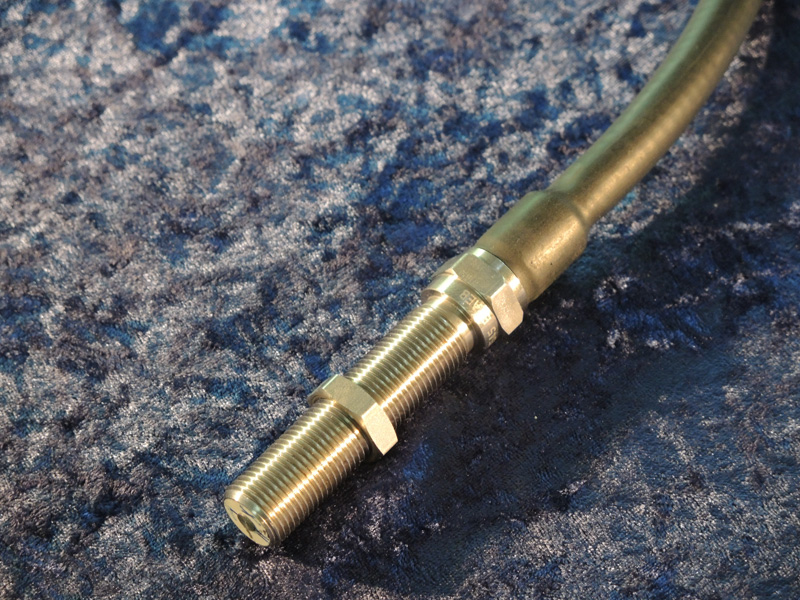

  • Passive-12.jpg

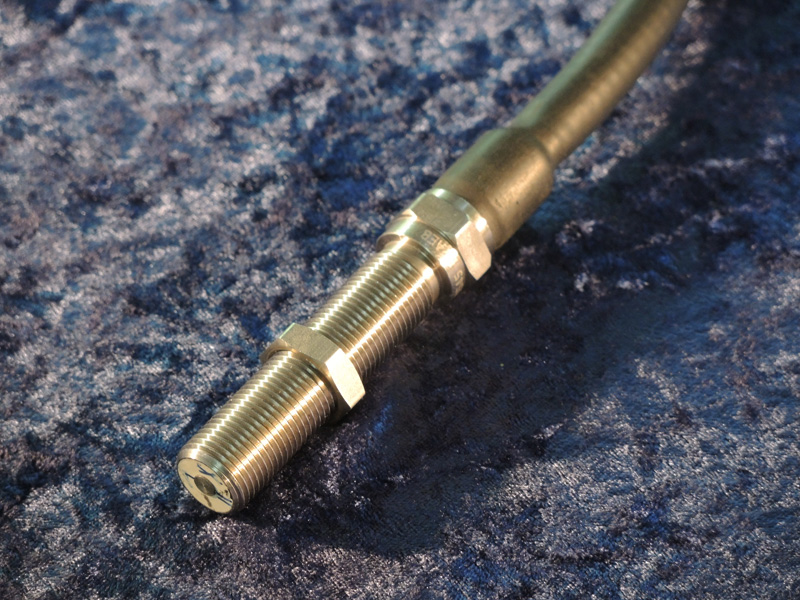

  • Passive-13.jpg

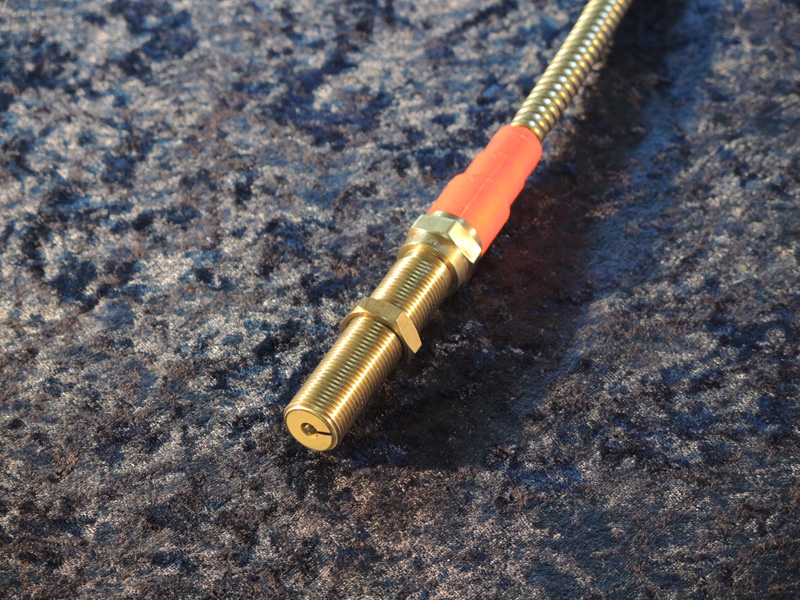

  • Passive-15.jpg
  • Passive-16.jpg

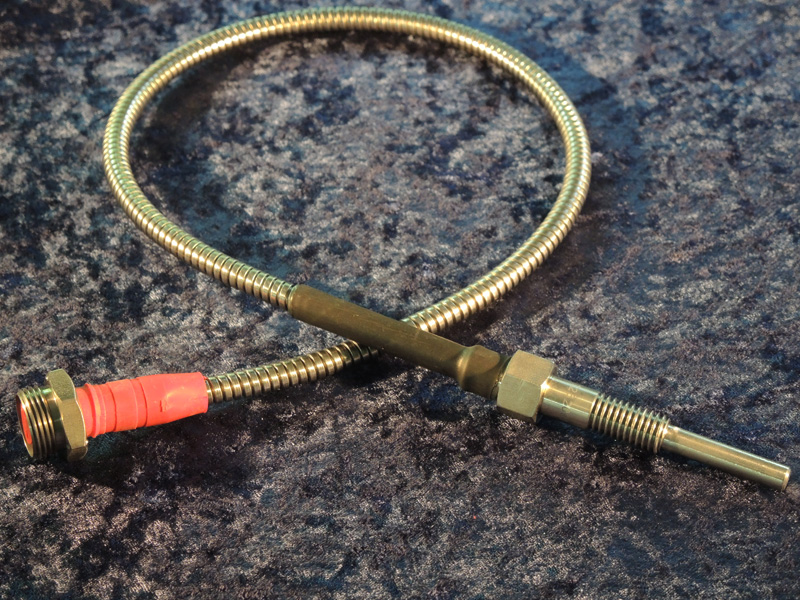

  • Passive-17.jpg

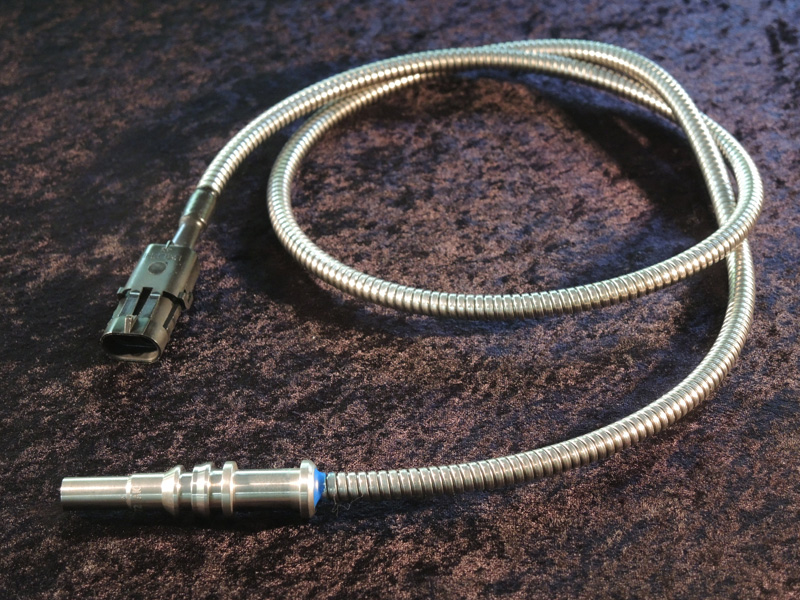

  • Passive-LOCO-1.jpg

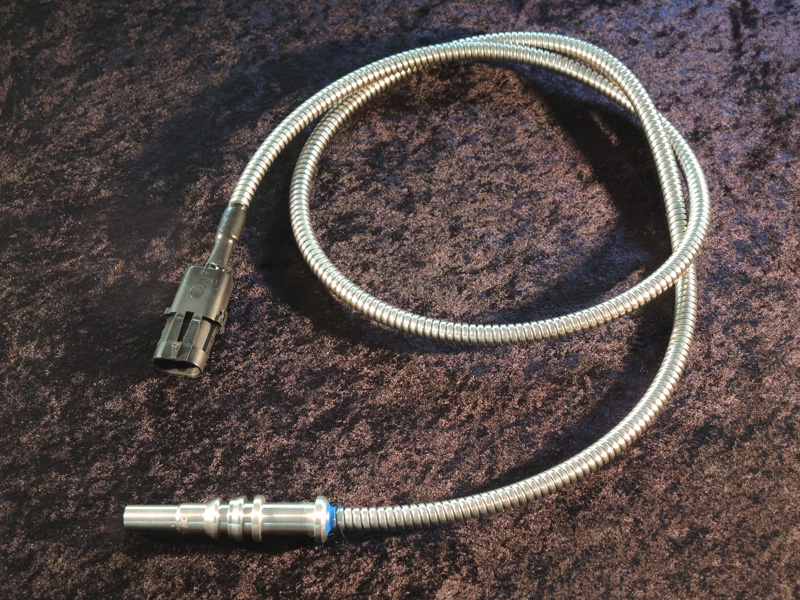

  • Passive-LOCO-2.jpg
  • Passive-LOCO-3.jpg

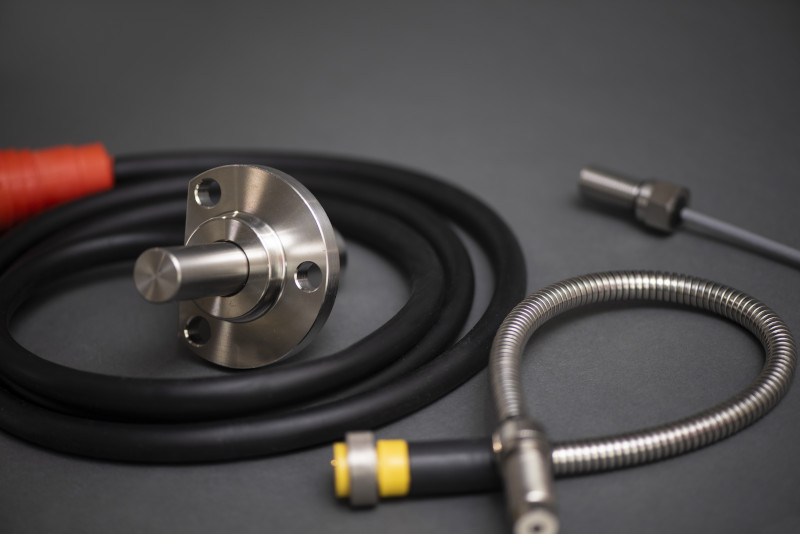

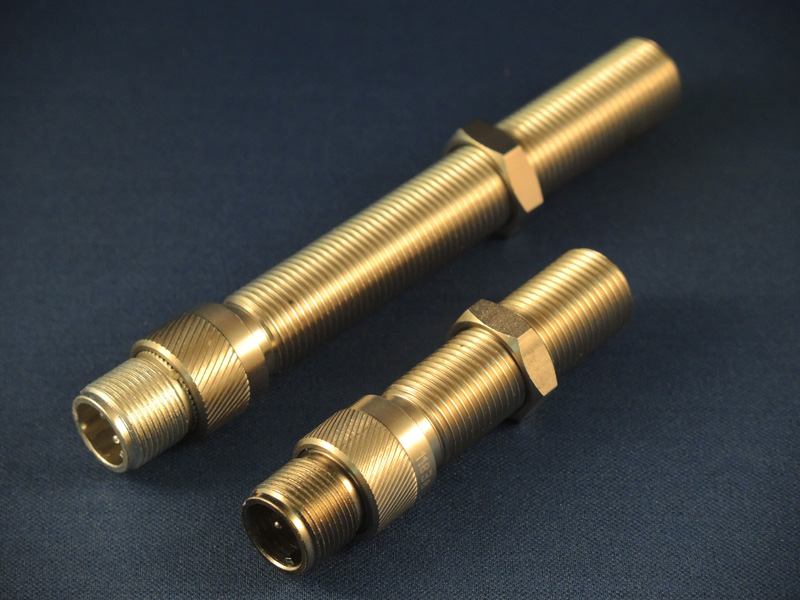

  • Passives-1.jpg

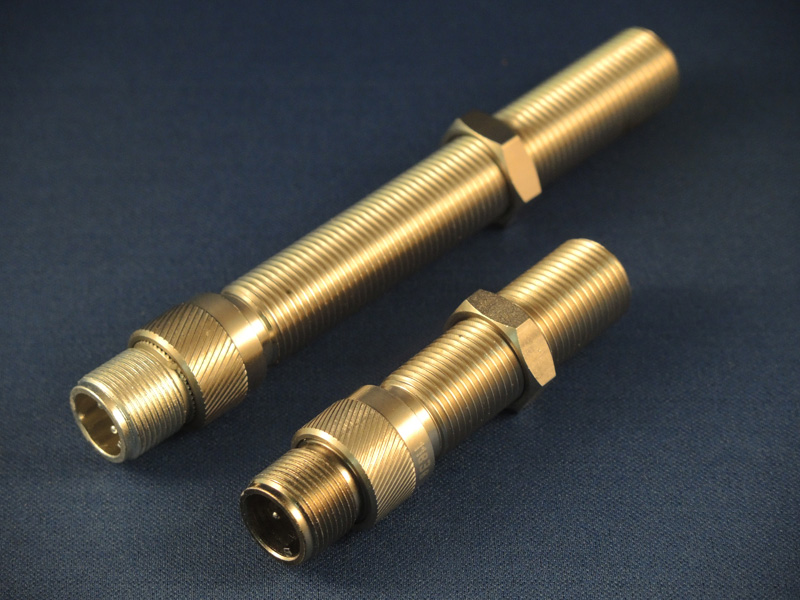

  • Passives-2.jpg
